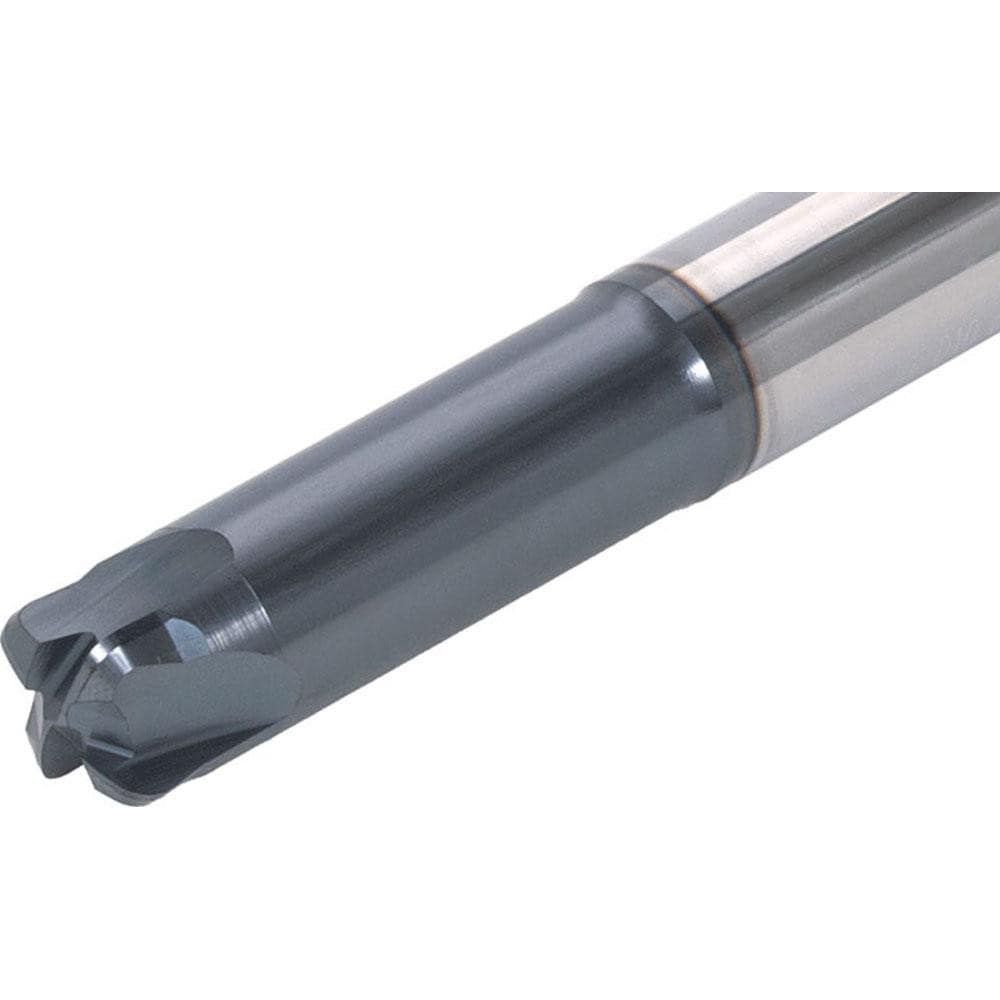

Corner Radius End Mill: 20 mm Dia, 1.00 mm LOC, 3.20 mm Radius, 4 Flute, Solid Carbide
Item #: 63174155
Brand: Tungaloy
Model #: 5622474
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 1.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | TiAlN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 3.20 |
| Overall Length (mm) | 104.00 |
| Coolant Through | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Long |
| Flute Type | Straight |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 20.00 |
| Neck Diameter (mm) | 19.50 |
| Primary Workpiece Material | Hard Material |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | H |
| Material Grade | AH750 |
| Series | TEFF-N4 |
| For Use With. | Milling Chuck; ER Collet; Shrink Fit Holder; Hydraulic Holder; C-HYDRO; Milling Chuck Sleeve |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 1.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | TiAlN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 3.20 |
| Overall Length (mm) | 104.00 |
| Coolant Through | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Long |
| Flute Type | Straight |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 20.00 |
| Neck Diameter (mm) | 19.50 |
| Primary Workpiece Material | Hard Material |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | H |
| Material Grade | AH750 |
| Series | TEFF-N4 |
| For Use With. | Milling Chuck; ER Collet; Shrink Fit Holder; Hydraulic Holder; C-HYDRO; Milling Chuck Sleeve |
| MSC Part # | 63174155 |
| Mfr Part # | 5622474 |
| Country of Origin Country of Origin is subject to change | Israel |
