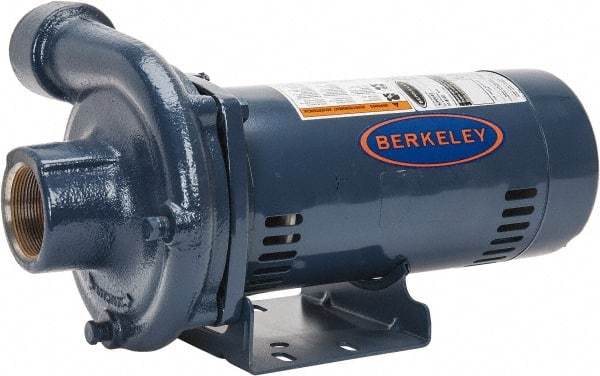

Berkeley - TEFC Motor, 208-230/460 Volt, 3 Phase, 2-1/2 HP, Cast Iron Straight Pump - 2 Inch Inlet, 1-1/2 Inch Outlet, 142 Max Head psi, Brass Impeller
Item #: 09396938
Brand: Berkeley
Model #: S39540
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Current Type | AC |
| Input Voltage | 208-230/460 |
| Phase | 3 |
| Horsepower | 2-1/2 |
| Motor Type | TEFC |
| Inlet Size (Inch) | 2 |
| Outlet Size (Inch) | 1-1/2 |
| Maximum Head Pressure | 142.0 |
| Housing Material | Cast Iron |
| Impeller Material | Brass |
| GPM @ 20 Feet of Head | 92.000 |
| GPM @ 40 Feet of Head | 85.000 |
| GPM @ 60 Feet of Head | 77.000 |
| GPM @ 80 Feet of Head | 67.000 |
| GPM @ 100 Feet of Head | 53 |
| GPM @ 120 Feet of Head | 37 |
| Frequency Hz | 60 |
| End Connections | FPT x FPT |
