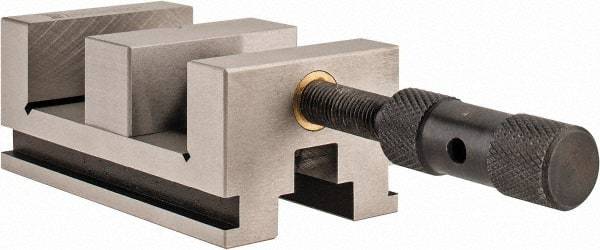

Interstate - 2-3/8" Jaw Width, 2-1/8" Jaw Opening Capacity, 1" Jaw Height, Toolmaker's Vise - V-Groove Jaw, 0.0001" Parallelism, 0.0002" Squareness, 4.33" OAL x 2.3" OAH
Item #: 09287624
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
V-Groove jaws can either have horizontal or vertical V-grooves to clamp cylindrical parts parallel or perpendicular to the vise during an operation.
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 2-3/8 |
| Jaw Opening Capacity (Inch) | 2-1/8 |
| Jaw Height (Inch) | 1 |
| Jaw Shape | V-Groove |
| Parallelism (Decimal Inch) | 0.000100 |
| Squareness (Decimal Inch) | 0.000200 |
| Overall Length (Decimal Inch) | 4.3300 |
| Material | Steel |
| Overall Height (Decimal Inch) | 2.3000 |
| Model Number | EVSD-S60 |
