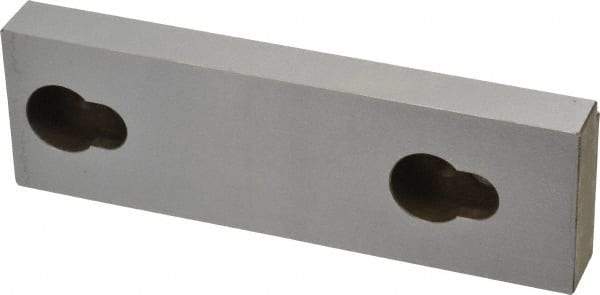

Kurt - 5.969" Wide x 1.88" High x 0.725" Thick, Step Vise Jaw - Steel, Fixed Jaw, Compatible with 6" Vises
Item #: 09219668
Brand: Kurt
Model #: AJ600-32
Exact Tooling IR#: 04
Features and Benefits
Step jaws are single step ground for a specific depth. They perform like parallels which are used to elevate the workpiece above the vise jaws to clamp parts.
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
Fixed or stationary jaw bodies are non-movable and remain in a fixed position on the vise bed. Jaw plates are mounted to the jaw body.
| Product Specifications | |
|---|---|
| Jaw Shape | Step |
| Jaw Width (Decimal Inch) | 5.9690 |
| Jaw Height (Decimal Inch) | 1.8800 |
| Jaw Thickness (Decimal Inch) | 0.7250 |
| Material | Steel |
| Jaw Movement Type | Fixed |
| Vise Compatibility | 6" Vises |
| Step Height (Decimal Inch) | 0.1880 |
| Attachment Method | Bolt-On |
| Reversible | Yes |
| Model Number | AJ600 |
