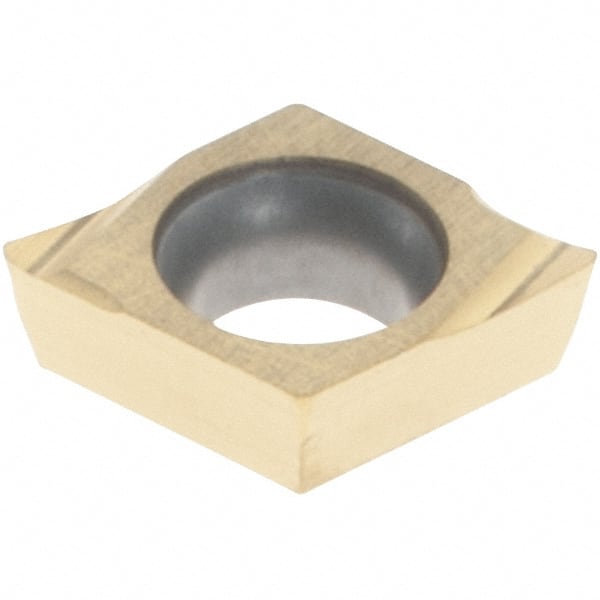

Turning Insert
Item #: 09211137
Brand: Tungaloy
Model #: 6804310
Product Specifications
| Insert Style | EPGT |
| Insert Shape Code | E |
| Insert Size Code | 040102 |
| Insert Shape | Diamond |
| Clearance Code | P |
| Tolerance Code | G |
| Manufacturer Grade | GH110 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.30 |
| Maximum Depth of Cut (mm) | 1.00 |
| Inscribed Circle (mm) | 3.97 |
| Insert Hand | Left Hand |
| Insert Thickness | 1.59 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 75.0 |
| Relief Angle | 11 |
| Series | EPGT |
| Rake | Positive |
| Insert Length (mm) | 4.10 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Iso Code | EPGT040102L-W08 |
| Standards | ISO |
| Chip Breaker | W08 |
| Coating/Finish | Coated |
