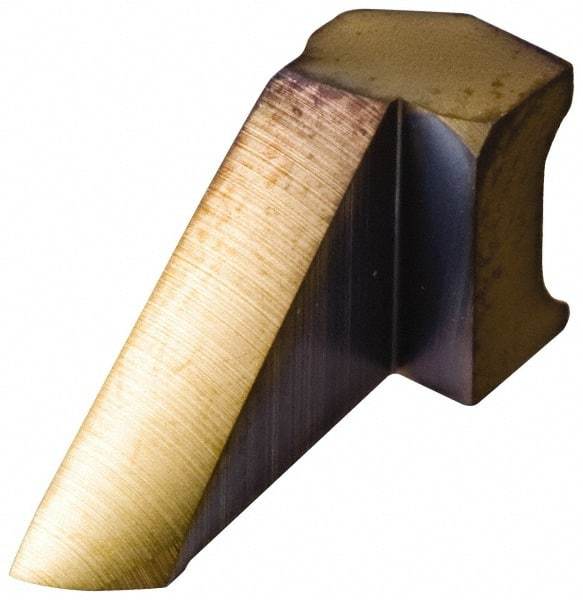

Kennametal - 3.42805, 45° KC7015 Grade Drill Chamfer Insert - TiN Coated, Series SEFAS
Item #: 09202169
Brand: Kennametal
Model #: 2272784
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Series | SEFAS |
| Material | Carbide |
| Insert Style | 3.42805 |
| Chamfer Angle | 45 |
| Manufacturer's Grade | KC7015 |
| Width (Decimal Inch) | 0.3150 |
| Width (mm) | 8.00 |
| Thickness (mm) | 2.83 |
| Thickness (Decimal Inch) | 0.1114 |
| Coating | TiN |
| Coating Process | PVD |
