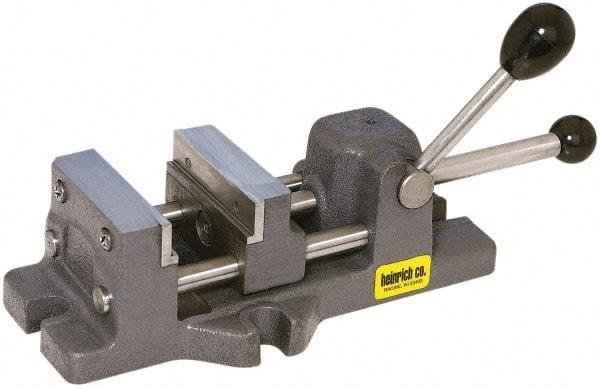

Heinrich - 6-3/16" Jaw Opening Capacity x 1-13/16" Throat Depth, Horizontal Drill Press Vise - 6" Wide x 6-3/16" High Jaw, Stationary Base, Standard Speed
Item #: 09145566
Brand: Heinrich
Model #: 6-SV-ASSEMBLY
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 6-3/16 |
| Jaw Opening Capacity (Decimal Inch) | 6.1875 |
| Throat Depth (Inch) | 1-13/16 |
| Throat Depth (Decimal Inch) | 1.8125 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Base Length (Inch) | 14-11/16 |
| Base Width (Inch) | 8-7/8 |
| Base Height (Inch) | 13/16 |
| Overall Width (Inch) | 8-7/8 |
| Model Number | 6-SV |
| Jaw Material | Steel |
| Jaw Height (Inch) | 6-3/16 |
