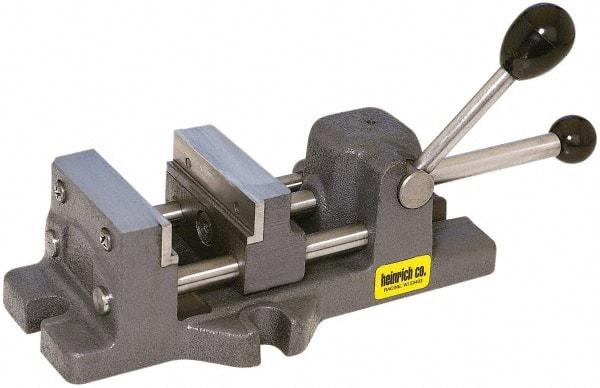

Heinrich - 4-11/16" Jaw Opening Capacity x 1-5/16" Throat Depth, Horizontal Drill Press Vise - 4" Wide x 4-11/16" High Jaw, Stationary Base, Standard Speed
Item #: 09145541
Brand: Heinrich
Model #: 4-GM-ASSEMBLY
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 4-11/16 |
| Jaw Opening Capacity (Decimal Inch) | 4.6875 |
| Throat Depth (Inch) | 1-5/16 |
| Throat Depth (Decimal Inch) | 1.3125 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Base Length (Inch) | 11-3/4 |
| Base Width (Inch) | 6-3/8 |
| Base Height (Inch) | 7/8 |
| Overall Width (Inch) | 6-3/8 |
| Model Number | 4-GM |
| Jaw Material | Steel |
| Jaw Height (Inch) | 4-11/16 |
