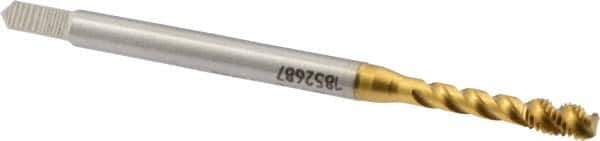

Emuge - M3x0.50 Metric Coarse 3 Flute 6H Bottoming Spiral Flute Tap - High Speed Steel, TiN Finish, 56mm OAL, Right Hand Flute, Right Hand Thread
Item #: 09077835
Brand: Emuge
Model #: B0513700.0030
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M3x0.50 |
| Chamfer | Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 56.00 |
| Helix Angle | 35 |
| Thread Standard | Metric Coarse |
| Oversize | No |
| Thread Length (mm) | 18.00 |
| Flute Type | Medium Spiral |
| Shank Diameter (mm) | 3.50 |
| Material Application | Cobalt Alloys; Copper Alloys; Nickel Alloys; Special Steel Materials |
