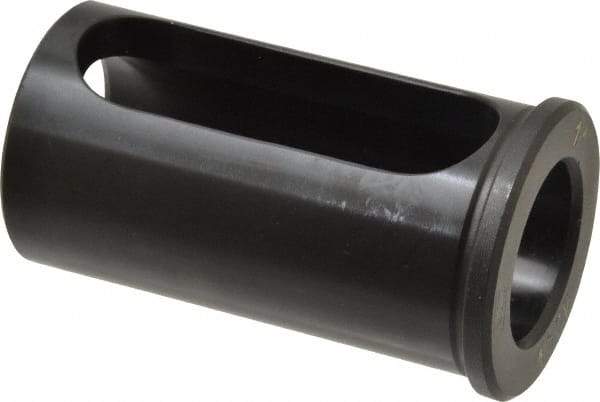

Global CNC Industries - 1" ID, 1-1/2" OD, 70mm Length Under Head, Type CV Lathe Tool Holder Bushing - 60mm Slot Length
Item #: 09072570
Brand: Global CNC Industries
Model #: 8613CV 1.000
Exact Tooling IR#: 04
Features and Benefits
CV toolholder bushings are shorter than the C style bushing.They are universal and designed with an enlogated slot for direct clamping.
| Product Specifications | |
|---|---|
| Type | CV |
| Outside Diameter (Decimal Inch) | 1.5000 |
| Outside Diameter (Inch) | 1-1/2 |
| Inside Diameter (Inch) | 1 |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Length Under Head (mm) | 70.00 |
| Length Under Head (Decimal Inch) | 2.7560 |
| Slot Length (mm) | 60.00 |
