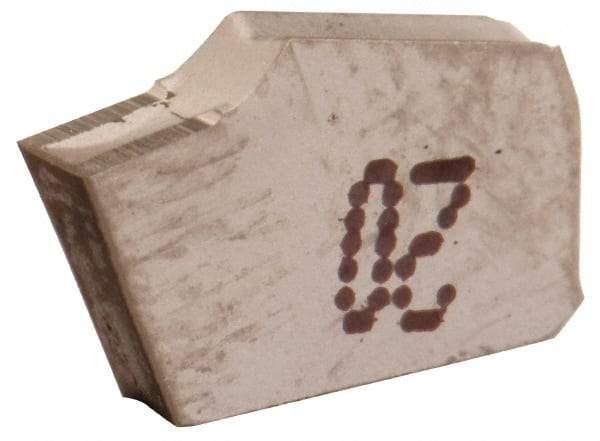

Iscar - GTR6 IC354 Grade, 0.252" Cutting Width, Carbide Cutoff Insert - 8° Right Hand Lead Angle, 0.0138" Cnr Rad, TiCN Coated, Single End
Item #: 08690810
Brand: Iscar
Model #: 6002718
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GTR |
| Insert Size | 6 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 6.40 |
| Cutting Width (Decimal Inch) | 0.2520 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0138 |
| Corner Radius (mm) | 0.35 |
| Insert Holding Method | Clamp |
