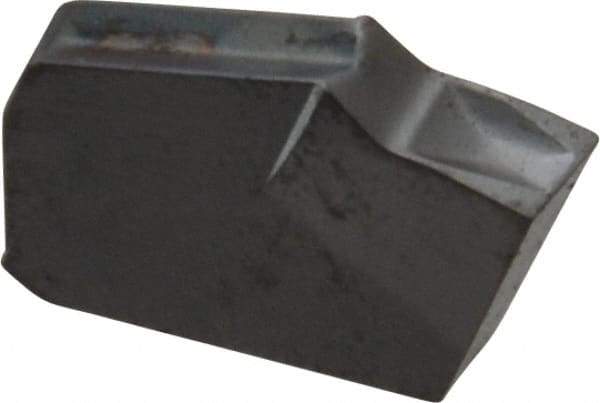

Iscar - GTL2.4 IC354 Grade, 0.0945" Cutting Width, Carbide Cutoff Insert - 8° Left Hand Lead Angle, 0.0063" Cnr Rad, TiCN Coated, Single End
Item #: 08690463
Brand: Iscar
Model #: 6002635
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GTL |
| Insert Size | 2.4 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 2.40 |
| Cutting Width (Decimal Inch) | 0.0945 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0063 |
| Corner Radius (mm) | 0.16 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2.4 |
