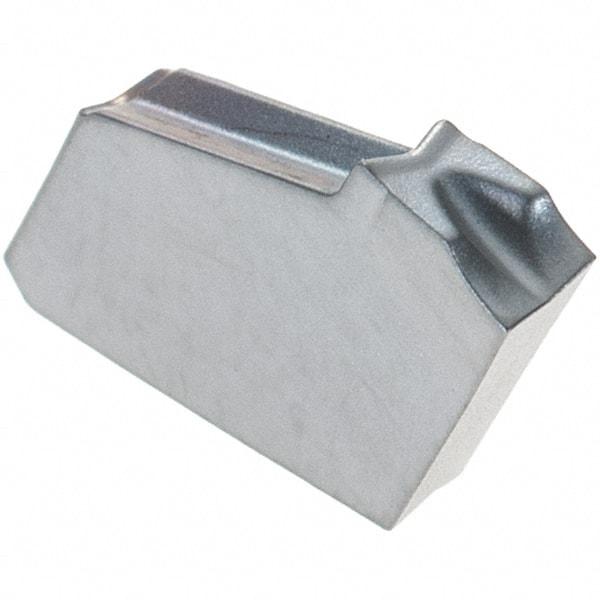

Iscar - GFR2 JS IC328 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 10° Right Hand Lead Angle, 0.0008" Cnr Rad, TiN/TiCN Coated, Single End
Item #: 08618852
Brand: Iscar
Model #: 6002742
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFR |
| Insert Size | 2 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 10 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiN/TiCN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Chipbreaker | JS |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0008 |
| Corner Radius (mm) | 0.02 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | GFR 2JS-10D |
