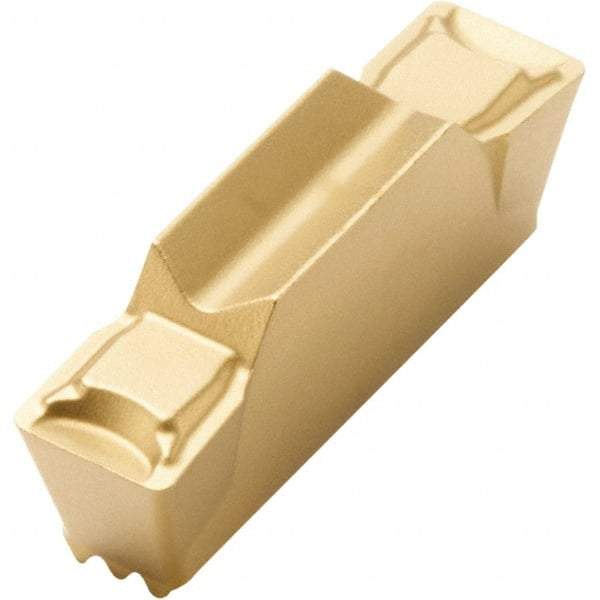

Seco - 160504LCMF MG Grade CP500, 5mm Cutting Width Carbide Grooving Insert - Neutral, 0.016" Corner Radius, TiAlN/TiN Finish
Item #: 08603433
Brand: Seco
Model #: 86117
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LCMF |
| Insert Size | 160504 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.1770 |
| Relief Angle | 7 |
| Insert Seat Size | 5 |
| Chipbreaker | MG |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0160 |
| Maximum Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6300 |
