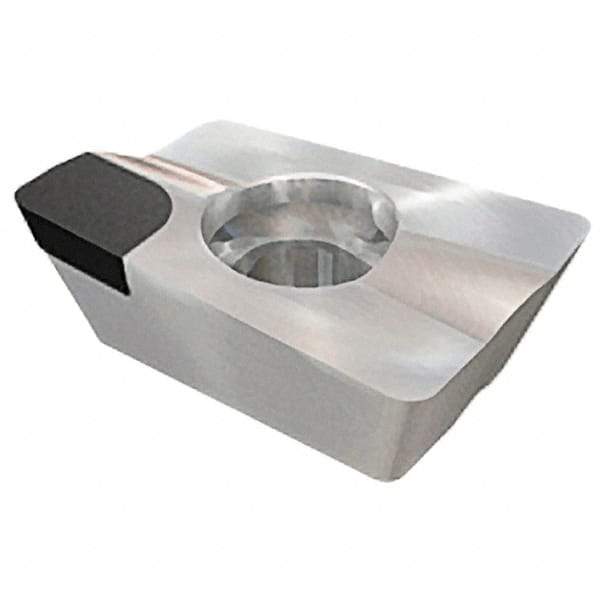

Iscar - ADKW150508 Grade ID8 PCD Milling Insert - Uncoated, 0.2295" Thick, 0.8mm Corner Radius
Item #: 08464950
Brand: Iscar
Model #: 5605185
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | ADKW |
| Insert Size | 150508 |
| Material | PCD |
| Manufacturer's Grade | ID8 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3780 |
| Length (Decimal Inch) | 0.6370 |
| Thickness (Decimal Inch) | 0.2295 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| ISO Number | ADKW 150508 PDR |
