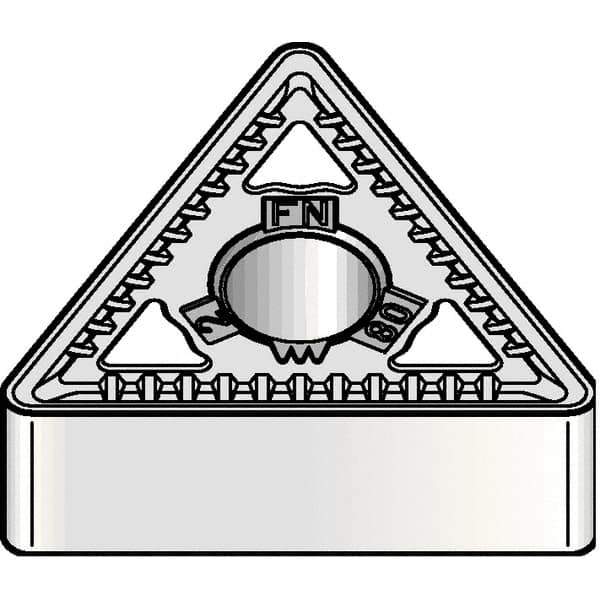

Kennametal - TNMG221 FN Grade KCP25 Carbide Turning Insert - TiCN/Al2O3 Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 08338402
Brand: Kennametal
Model #: 3753714
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 221 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4331 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCP25 |
| Coating | TiCN/Al2O3 |
| Material Grade | C2/C3/C6/C7 |
| Chip Breaker | FN |
| Hole Diameter (mm) | 2.26 |
| Hole Diameter (Decimal Inch) | 0.0890 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 60 |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
