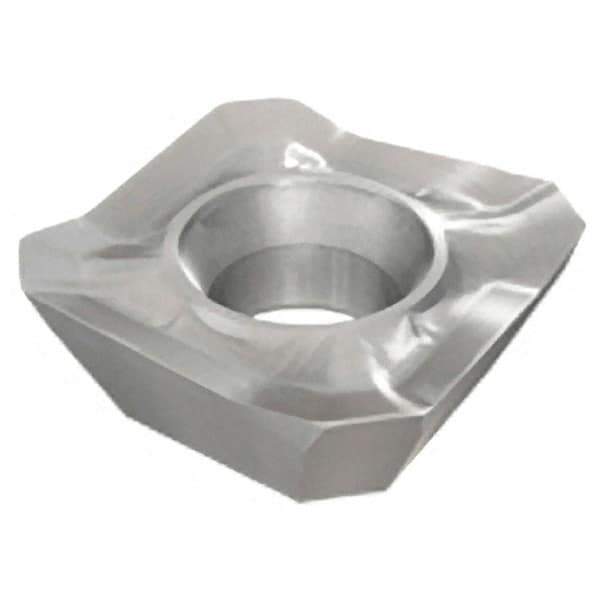

Iscar - SEKT09T3 N Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.165" Thick, 0.378" Inscribed Circle
Item #: 08237422
Brand: Iscar
Model #: 5696103
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEKT |
| Insert Size | 09T3 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Thickness (Decimal Inch) | 0.1650 |
| Relief Angle | 20.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | N |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| ISO Number | SEKT 09T3AF-N |
