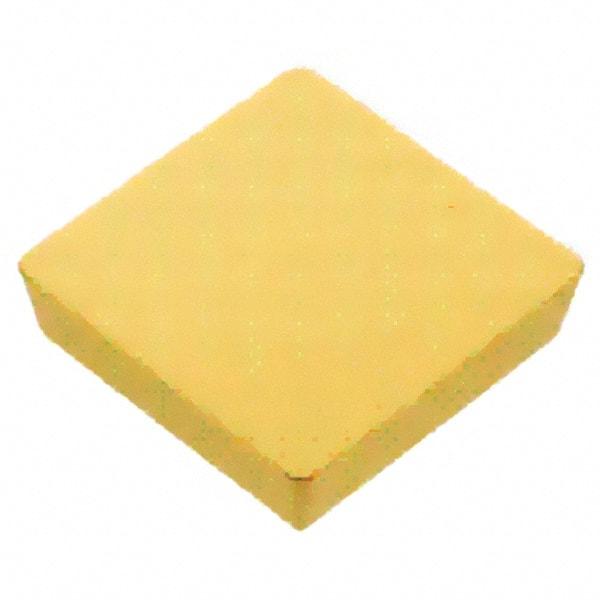

Iscar - SEM422 Grade IC635 Carbide Milling Insert - TiN/TiC/TiN Finish, 1/8" Thick, 1/2" Inscribed Circle, 0.79mm Corner Radius
Item #: 08232597
Brand: Iscar
Model #: 5600157
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEM |
| Insert Size | 422 |
| Material | Carbide |
| Manufacturer's Grade | IC635 |
| Coating | TiN/TiC/TiN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 20.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Manufacturers Catalog Number | SEM 422 |
