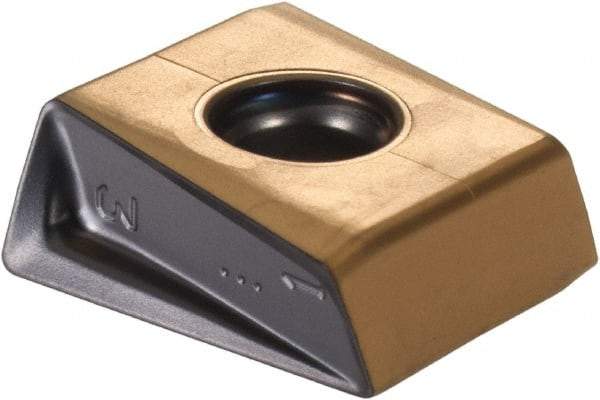

Iscar - T490 LNMT1607 PNR Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.623" Thick, 0.79mm Corner Radius
Item #: 08155657
Brand: Iscar
Model #: 5606093
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNMT |
| Insert Size | 1607 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.2760 |
| Length (Decimal Inch) | 0.6710 |
| Thickness (Decimal Inch) | 0.6230 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | PNR |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Manufacturers Catalog Number | T490 LNMT 1607PN-R |
