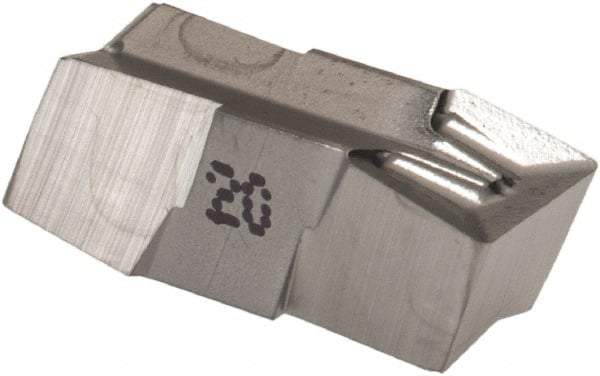

Iscar - 600040GIPA Grade IC20, 6mm Cutting Width Carbide Grooving Insert - 3.61mm Max Depth of Cut, Neutral, 0.41mm Corner Radius, Uncoated
Item #: 08073132
Brand: Iscar
Model #: 6402601
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPA |
| Insert Size | 600040 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.1420 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Overall Length (mm) | 14.99 |
| Overall Length (Decimal Inch) | 0.5900 |
| Series | Cut Grip |
| ISO Number | GIPA 6.00-0.40 |
| Manufacturers Catalog Number | GIPA 6.00-0.40 |
