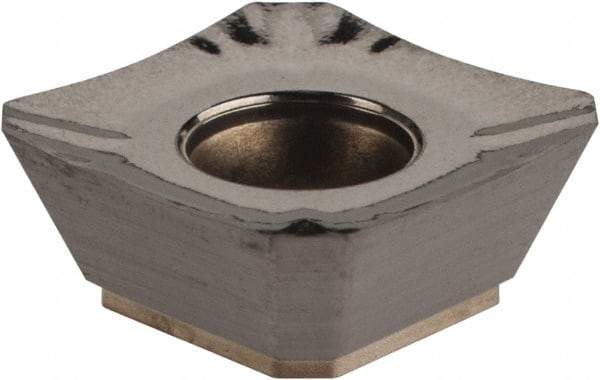

Seco - SEEX09T3 E04 Grade H15 Carbide Milling Insert - Uncoated, 0.156" Thick, 3/8" Inscribed Circle
Item #: 07933898
Brand: Seco
Model #: 00031
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 09T3 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | H15 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3750 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Relief Angle | 20.000 |
| Rake Angle | 25 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | E04 |
| ISO Number | SEEX09T3AFN-E04 |
