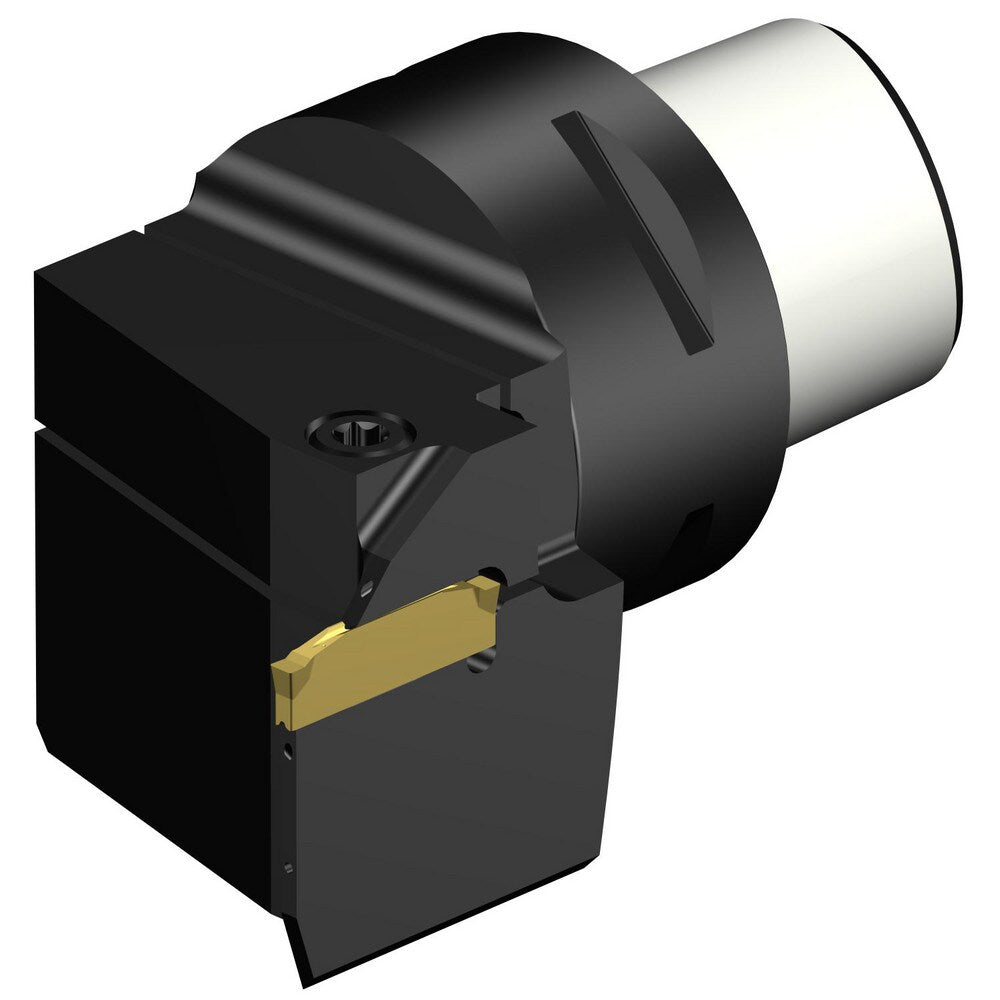

Modular Grooving Cutting Unit Heads; System Size: C4; Maximum Depth of Cut (Decimal Inch): 0.3150; Maximum Depth of Cut (mm): 8.00; Minimum Groove Width (Decimal Inch): 1.0630; Minimum Groove Width (mm): 27.00; Maximum Groove Width (Decimal Inch): 1.0630;
Item #: 02218998
Brand: Sandvik Coromant
Model #: 8290104
Product Specifications
| System Size | C4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 1.0630 |
| Minimum Groove Width (mm) | 27.00 |
| Maximum Groove Width (Decimal Inch) | 1.0630 |
| Maximum Groove Width (mm) | 27.00 |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | C2I |
| Compatible Insert Size Code | E |
| Series | CoroCut 2 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Blade Style Compatibility | None |
| Complete Insert Compatibility | CoroCut 2 -size E (C2I-E2-0200-) |
| Applications | Parting and Grooving |
| Head Length Projection (Decimal Inch) | 2.1654 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 55.00 |
| UNSPSC Code | 27112809 |
