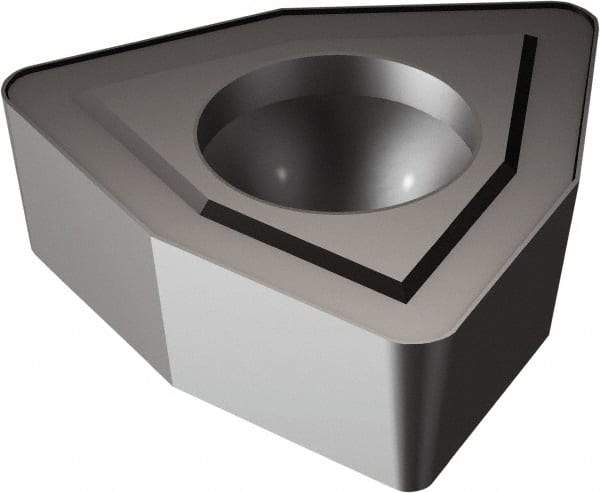

Sandvik Coromant - WCMX8 53 Grade 3040 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, Trigon, 1/2" Inscribed Circle
Item #: 07795370
Brand: Sandvik Coromant
Model #: 5756232
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 8 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Shape | Trigon |
| Width (Decimal Inch) | 0.5000 |
| Width (mm) | 12.70 |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 4.30 |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Relief Angle | 7 |
| Included Angle | 7 |
| Coating | TiCN/Al2O3 |
| Coating Process | MTCVD |
| Cutting Direction | Right Hand |
| Chipbreaker | 53 |
