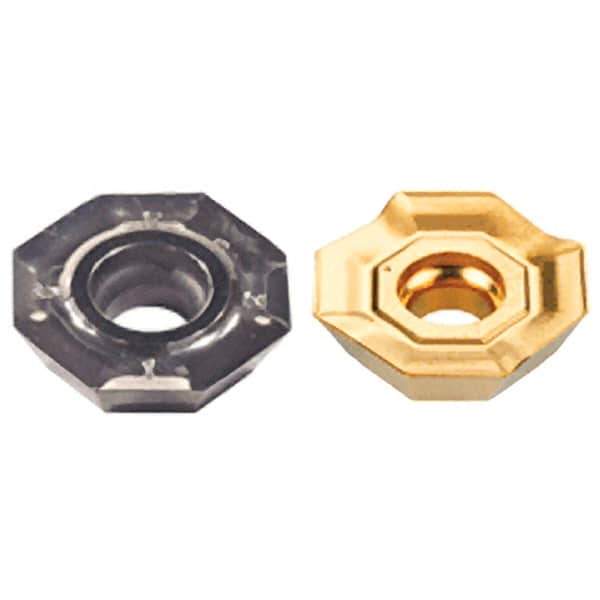

Iscar - OFCT07T3 Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.2087" Thick, 0.7441" Inscribed Circle, 1.6mm Corner Radius
Item #: 07630700
Brand: Iscar
Model #: 5695339
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFCT |
| Insert Size | 07T3 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Inscribed Circle (Decimal Inch) | 0.7441 |
| Thickness (Decimal Inch) | 0.2087 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| ISO Number | OFCT 07T3-AER |
