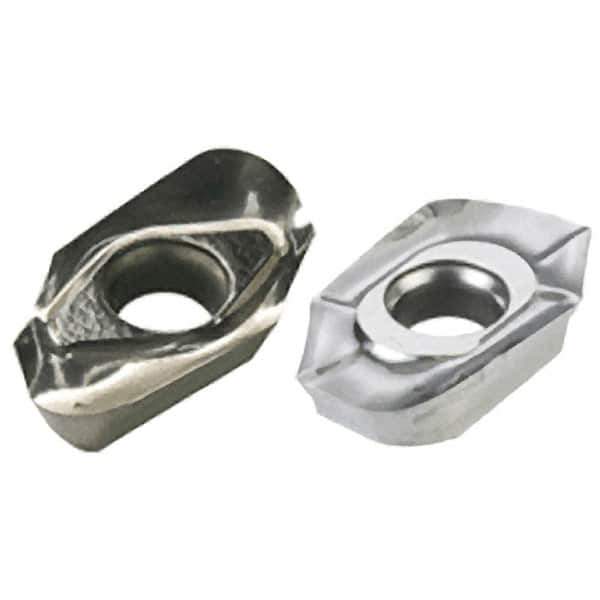

Iscar - HM90 APCR160520 P Grade IC08 Carbide Milling Insert - Uncoated, 0.189" Thick, 2mm Corner Radius
Item #: 07629199
Brand: Iscar
Model #: 5603358
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APCR |
| Insert Size | 160520 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.5157 |
| Length (Decimal Inch) | 0.9961 |
| Thickness (Decimal Inch) | 0.1890 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 15.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.5984 |
| ISO Number | HM90 APCR 160520R-P |
