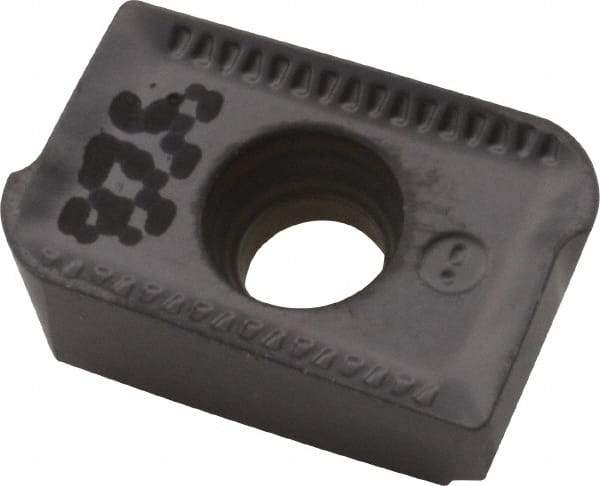

Iscar - 3M AXKT130424 PDRMM Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.165" Thick, 2.39mm Corner Radius
Item #: 07628282
Brand: Iscar
Model #: 5602947
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3M AXKT |
| Insert Size | 130424 |
| Material | Carbide |
| Material Grade | P45/K40 |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3310 |
| Length (Decimal Inch) | 0.5310 |
| Thickness (Decimal Inch) | 0.1650 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Corner Radius (mm) | 2.39 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | PDRMM |
| Maximum Depth of Cut (mm) | 12.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.5020 |
| Manufacturers Catalog Number | 3M AXKT 130424R-PDRMM |
