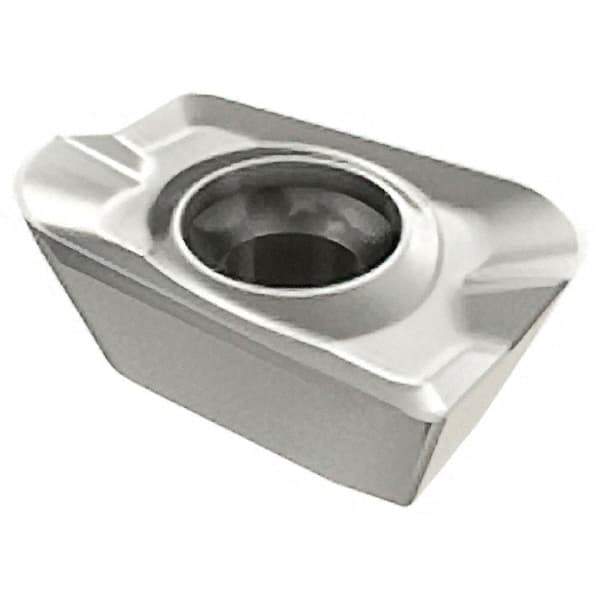

Iscar - ADKT150524 HM Grade IC328 Carbide Milling Insert - TiCN Finish, 0.22" Thick, 0.098" Corner Radius
Item #: 07627987
Brand: Iscar
Model #: 5602418
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADKT |
| Insert Size | 150524 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.3770 |
| Length (Decimal Inch) | 0.6140 |
| Thickness (Decimal Inch) | 0.2200 |
| Corner Radius (Decimal Inch) | 0.0980 |
| Relief Angle | 15.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | HM |
| Maximum Depth of Cut (Decimal Inch) | 0.5430 |
| ISO Number | ADKT 150524L-HM |
