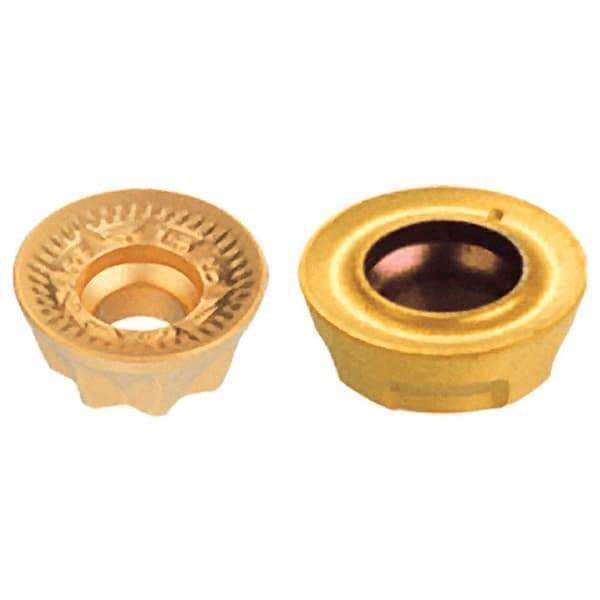

Iscar - RXCR05T1 Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.0591" Thick, 5mm Inscribed Circle
Item #: 07627870
Brand: Iscar
Model #: 5602343
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RXCR |
| Insert Size | 05T1 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (Decimal Inch) | 0.0591 |
| Relief Angle | 15.000 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Round |
| ISO Number | RXCR 05T1 |
