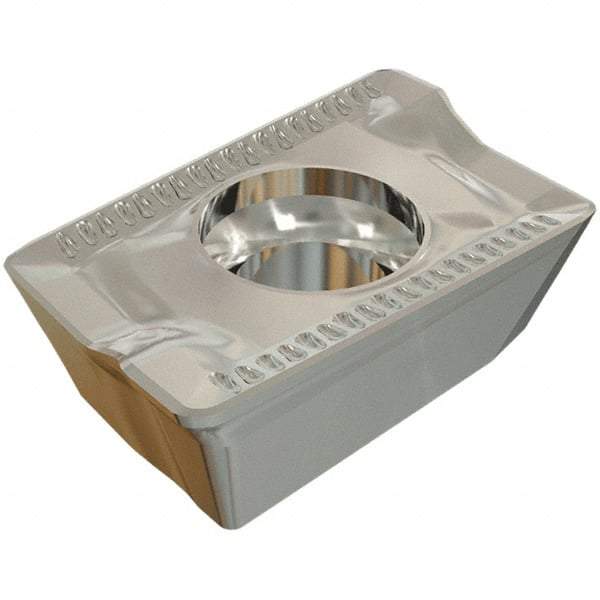

Iscar - ADKT1505 76 Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.222" Thick, 0.039" Corner Radius
Item #: 07627839
Brand: Iscar
Model #: 5602241
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADKT |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Width (Decimal Inch) | 0.3760 |
| Length (Decimal Inch) | 0.6200 |
| Thickness (Decimal Inch) | 0.2220 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | 76 |
| Maximum Depth of Cut (Decimal Inch) | 0.5470 |
| ISO Number | ADKT 1505PDTR-76 |
