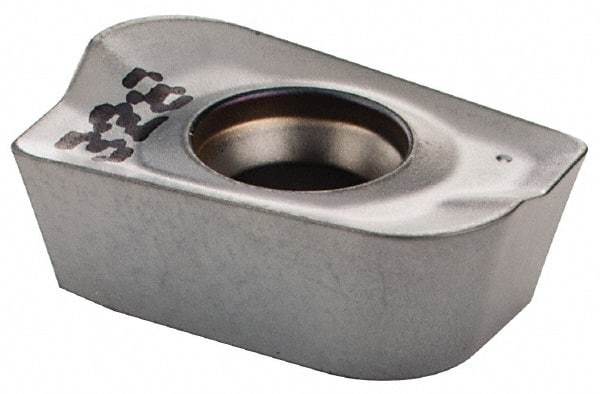

Iscar - ADKT150532 HM Grade IC328 Carbide Milling Insert - TiCN Finish, 0.2205" Thick, 3.1mm Corner Radius
Item #: 07627722
Brand: Iscar
Model #: 5602156
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADKT |
| Insert Size | 150532 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.3768 |
| Length (Decimal Inch) | 0.5394 |
| Thickness (Decimal Inch) | 0.2205 |
| Corner Radius (Decimal Inch) | 0.1220 |
| Corner Radius (mm) | 3.10 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Left Hand |
| Chipbreaker | HM |
| ISO Number | ADKT 150532L-HM |
