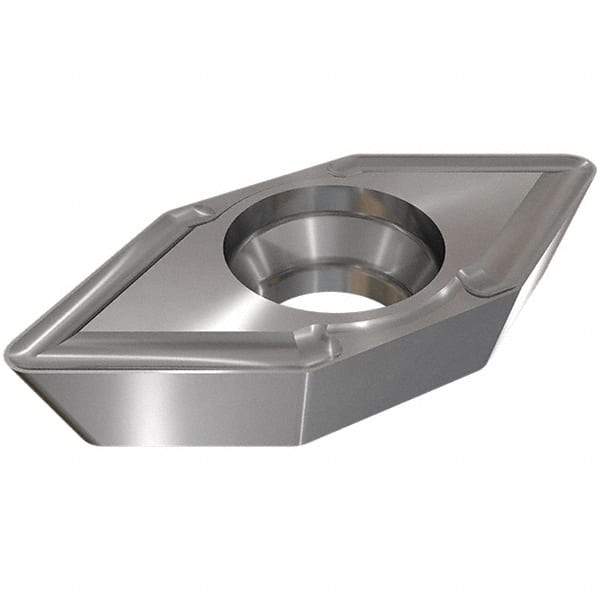

Iscar - AOMT060204 DT Grade IC508 Carbide Indexable Drill Insert - TiCN/TiN Finish, Parallelogram
Item #: 07552086
Brand: Iscar
Model #: 5505512
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | AOMT |
| Insert Size | 060204 |
| Material | Carbide |
| Manufacturer's Grade | IC508 |
| Thickness (mm) | 1.96 |
| Thickness (Decimal Inch) | 0.0772 |
| Shape | Parallelogram |
| Width (Decimal Inch) | 0.1772 |
| Width (mm) | 4.50 |
| Length (mm) | 5.66 |
| Length (Decimal Inch) | 0.2228 |
| Included Angle | 85 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Chipbreaker | DT |
