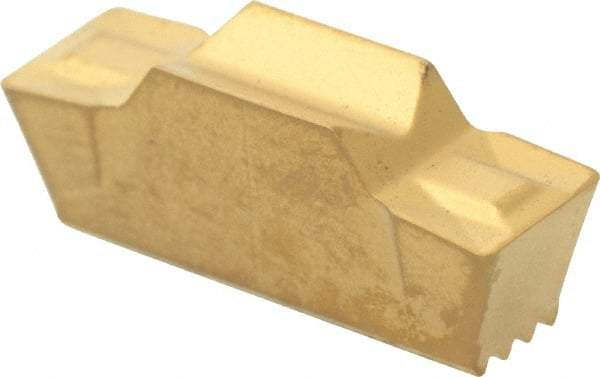

Seco - LCMF, 160504 0.197" Cutting Width, MT, CP500 Grade, Double End Multi-Directional Turning Insert - TiAlN/TiN Finish, 0.016" Corner Radius
Item #: 07404940
Brand: Seco
Model #: 77897
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMF |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Thickness (Decimal Inch) | 0.0000 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Cutting Width (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Maximum Corner Radius (Decimal Inch) | 0.0310 |
| Minimum Corner Radius (Decimal Inch) | 0.0160 |
| Single or Double End | Double |
| Chipbreaker | MT |
| Insert Seat Size | 5 |
| Full Radius | No |
| Insert Length (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 0.6300 |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
