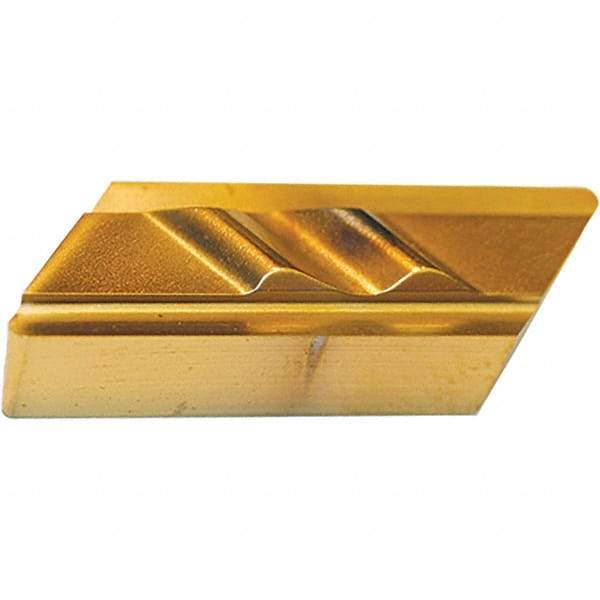

Tool-Flo - FLPR50.5, GP50 Grade Carbide Profiling Insert - TiN Finish, 55° Incl Angle, Parallelogram, 1/8" Thick, 0.005" Corner Radius
Item #: 07341605
Brand: Tool-Flo
Model #: 642505N4C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | FLPR |
| Insert Size | 50.5 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | GP50 |
| Width (Decimal Inch) | 0.2500 |
| Width (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0050 |
| Relief Angle | 8 |
| Coating | TiN |
| Insert Length (Decimal Inch) | 0.3750 |
| Insert Length (Inch) | 3/8 |
| Coating Process | PVD |
| Chipbreaker | C |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Shape | Parallelogram |
