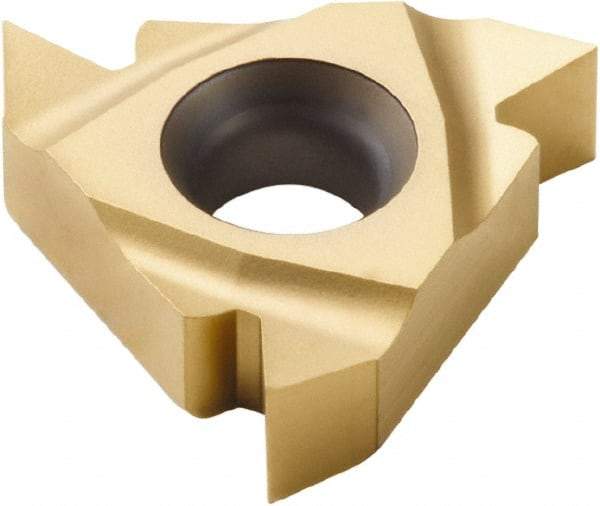

Seco - 16ER External Right Hand 14-8 Partial Profile 60° Laydown Threading Insert - Grade CP200, TiAlN/TiN Coated Carbide, 9.53mm Inscribed Circle
Item #: 07284581
Brand: Seco
Model #: 76247
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | Partial Profile 60 |
| Manufacturer's Grade | CP200 |
| Threads Per Inch | 14-8 |
| Pitch (mm) | 1.75-3.00 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (Decimal Inch) | 0.1366 |
| Thickness (mm) | 3.47 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.1800 |
