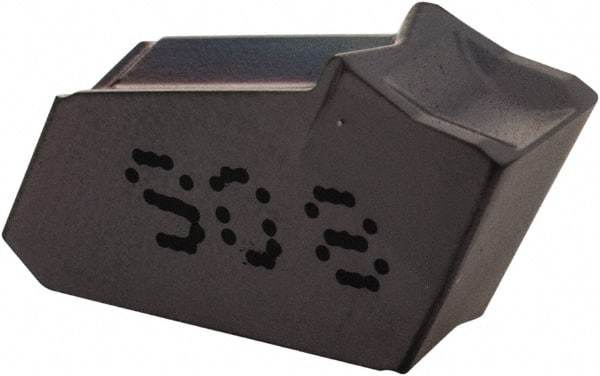

Iscar - GFN4 IC908 Grade, 0.1594" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0094" Cnr Rad, TiAlN Coated, Single End
Item #: 07079684
Brand: Iscar
Model #: 6003147
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFN |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 4.05 |
| Cutting Width (Decimal Inch) | 0.1594 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Multi-Use Application | Cut-Off; Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0094 |
| Corner Radius (mm) | 0.24 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | GFN 4 |
