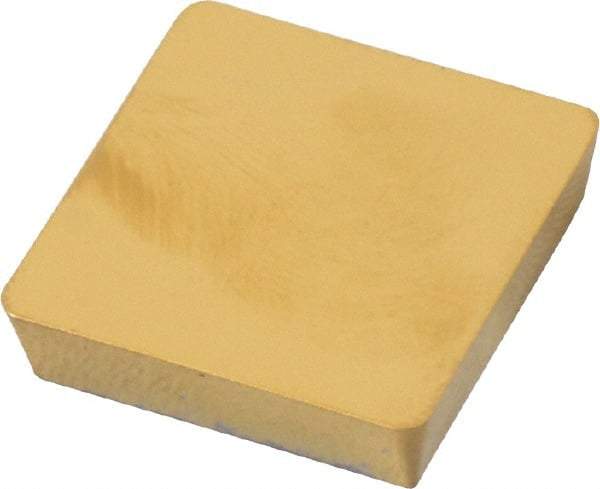

Kennametal - SPU633 Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 3/16" Thick, 3/4" Inscribed Circle, 3/64" Corner Radius
Item #: 06889547
Brand: Kennametal
Model #: 1162528
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPU |
| Insert Size | 633 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.19 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| ISO Number | SPUN190412 |
