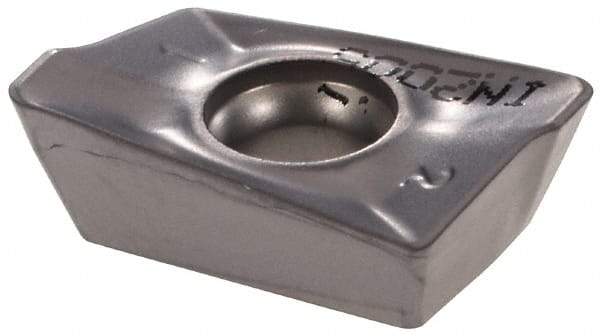

Ingersoll Cutting Tools - AOMT120408 Grade IN2005 Carbide Milling Insert - TiAlN Finish, 0.19" Thick, 0.031" Corner Radius
Item #: 06277248
Brand: Ingersoll Cutting Tools
Model #: 5811319
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | AOMT |
| Insert Size | 120408 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | IN2005 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3130 |
| Length (Decimal Inch) | 0.5050 |
| Thickness (Decimal Inch) | 0.1900 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | AOMT120408R IN2005 |
