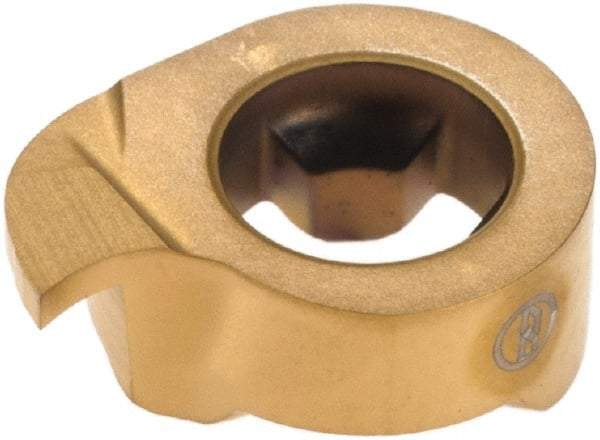

Iscar - 11085000GIQR Grade IC528, 0.85mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, Right Hand, TiCN/TiN Finish
Item #: 06132781
Brand: Iscar
Model #: 6402628
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQR |
| Insert Size | 11085000 |
| Material | Carbide |
| Cutting Width (mm) | 0.85 |
| Cutting Width (Decimal Inch) | 0.0335 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Profiling; Turning |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Overall Length (mm) | 10.68 |
| Overall Length (Decimal Inch) | 0.4205 |
| Series | ChamGroove |
