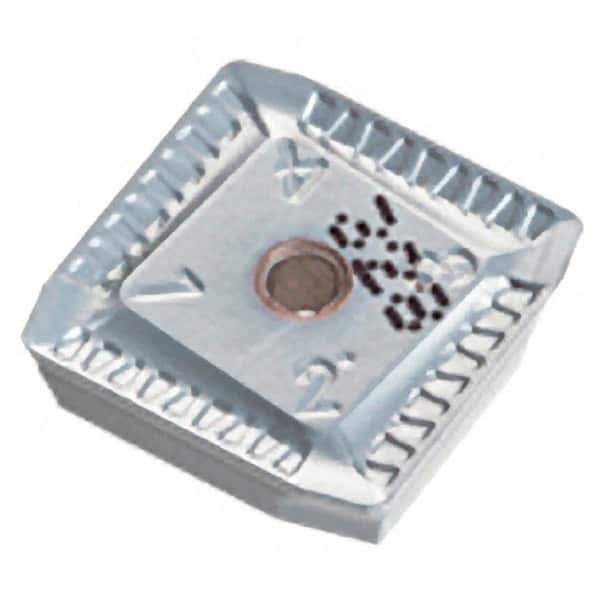

Iscar - SPKR42 76 Grade IC328 Carbide Milling Insert - TiCN Finish, 1/8" Thick, 1/2" Inscribed Circle
Item #: 05996590
Brand: Iscar
Model #: 5602195
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPKR |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | 76 |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Manufacturers Catalog Number | SPKR 42EDL-76 |
