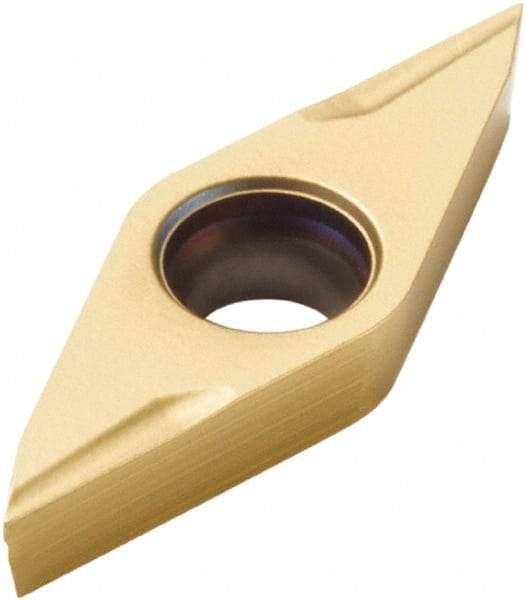

Seco - VCGX 09, 45° T400D Grade Drill Chamfer Insert - TiAlN, TiN Coated, Series Seco Crownloc
Item #: 05667936
Brand: Seco
Model #: 14948
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Seco Crownloc |
| Material | Carbide |
| Insert Style | VCGX |
| Insert Size | 09 |
| Chamfer Angle | 45 |
| Manufacturer's Grade | T400D |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Thickness (mm) | 2.50 |
| Thickness (Decimal Inch) | 0.0984 |
| Corner Radius (Decimal Inch) | 0.2000 |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Included Angle | 35 |
| Length (mm) | 9.00 |
| Length (Decimal Inch) | 0.3543 |
