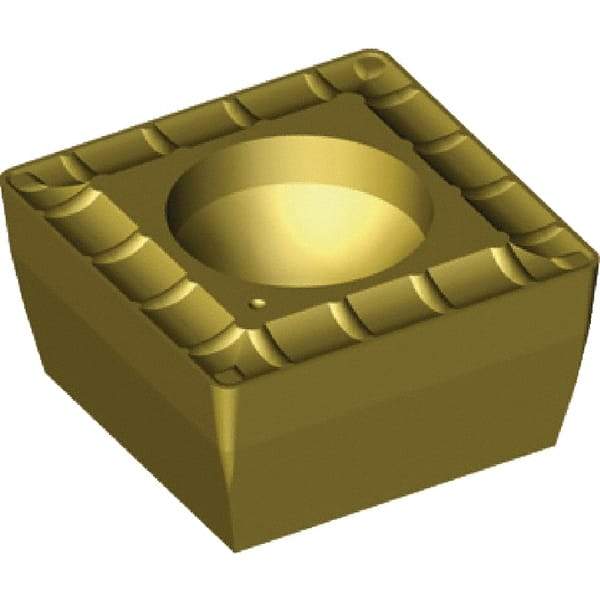

Kennametal - SPGT120408 MDT Grade KC7140 Carbide Indexable Drill Insert - TiCN/TiN Finish, Square, 1/2" Inscribed Circle
Item #: 05621024
Brand: Kennametal
Model #: 1928664
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | SPGT |
| Insert Size | 120408 |
| Material | Carbide |
| Manufacturer's Grade | KC7140 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Shape | Square |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | MDT |
