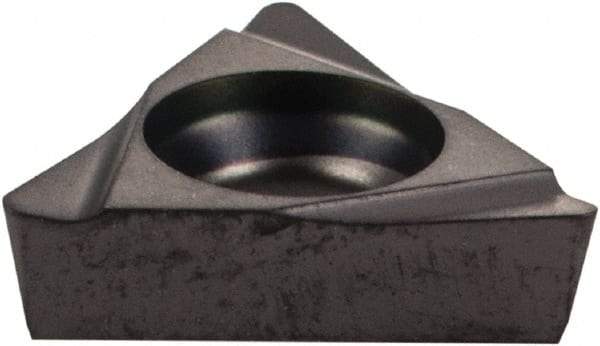

Iscar - TPGX731 Grade IC908 Carbide Boring Insert - TiAlN Finish, 60° Triangle, 11° Relief Angle, 7/32" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 05560776
Brand: Iscar
Model #: 5505576
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TPGX |
| Insert Size | 731 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating | TiAlN |
| Length (mm) | 9.52 |
| Length (Decimal Inch) | 0.3748 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Shape | Triangle |
