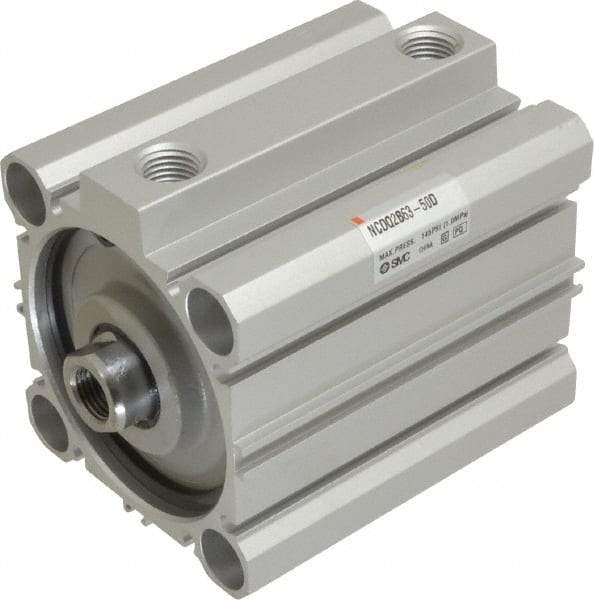

SMC PNEUMATICS - 1-15/16" Stroke x 2-1/2" Bore Double Acting Air Cylinder - 1/4 Port, 1/2-20 Rod Thread, 145 Max psi, 15 to 160°F
Item #: 05547864
Brand: SMC PNEUMATICS
Model #: NCDQ2B63-50DZ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 2-1/2 |
| Bore Size (mm) | 63.00 |
| Rod Diameter (Decimal Inch) | 0.787 |
| Rod Diameter (mm) | 20.00 |
| Stroke Length (Inch) | 1-15/16 |
| Stroke Length (mm) | 50.00 |
| Mounting Style | Double Clevis |
| Port Size | 1/4 |
| Port Type | NPT |
| Width (Decimal Inch) | 3.3070 |
| Width (mm) | 84.00 |
| Length (Decimal Inch) | 3.701 |
| Length (mm) | 44.00 |
| Distance Between Centers Width (mm) | 60.0000 |
| Material | Aluminum Alloy |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 145 |
| Rod Thread Size | 1/2-20 |
