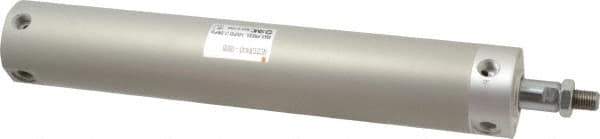

SMC PNEUMATICS - 1-1/2" Bore Double Acting Air Cylinder - 1/8 Port, 7/16-20 Rod Thread, 140 Max psi, 40 to 140°F
Item #: 05447735
Brand: SMC PNEUMATICS
Model #: NCDGBN40-0800
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1-1/2 |
| Bore Size (mm) | 40.00 |
| Rod Diameter (Decimal Inch) | 0.630 |
| Stroke Length (Decimal Inch) | 8.0000 |
| Mounting Style | Basic |
| Port Size | 1/8 |
| Port Type | NPT |
| Width (Decimal Inch) | 1.8500 |
| Length (Decimal Inch) | 12.770 |
| Distance Between Centers Width (Decimal Inch) | 1.020 |
| Mount Thread | 1/4-28 |
| Material | Aluminum Alloy |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 140 |
| Rod Thread Size | 7/16-20 |
