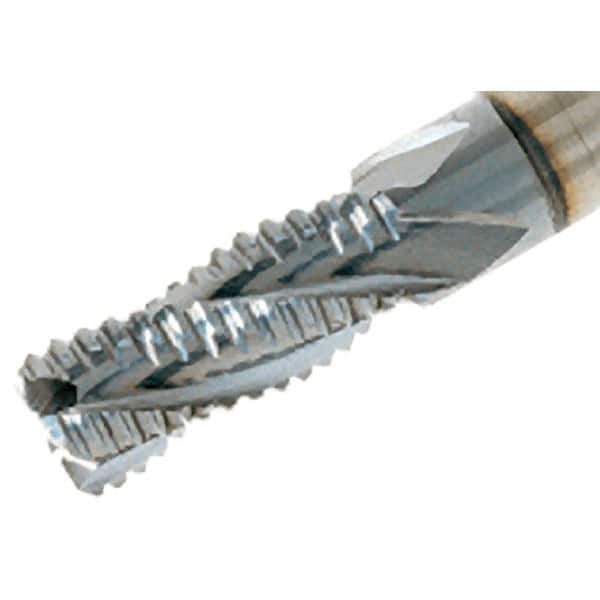

Iscar - 3/8" Diam, Extra Coarse Pitch, 3/4" LOC, 3 Flute Solid Carbide 45° Corner Chamfer Roughing End Mill - TiCN Finish, 2-1/2" OAL, 3/8" Shank Diam, Single End, Centercutting, 38° Helix
Item #: 05412242
Brand: Iscar
Model #: 5621016
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 3 |
| Pitch | Extra Coarse |
| Length of Cut (Inch) | 3/4 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/8 |
| End Type | Corner Chamfer |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Center Cutting |
| Helix Angle | 38.00 |
| Extended Reach | No |
| Chamfer Width (Decimal Inch) | 0.0240 |
| Chamfer Angle | 45 |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 2.5000 |
