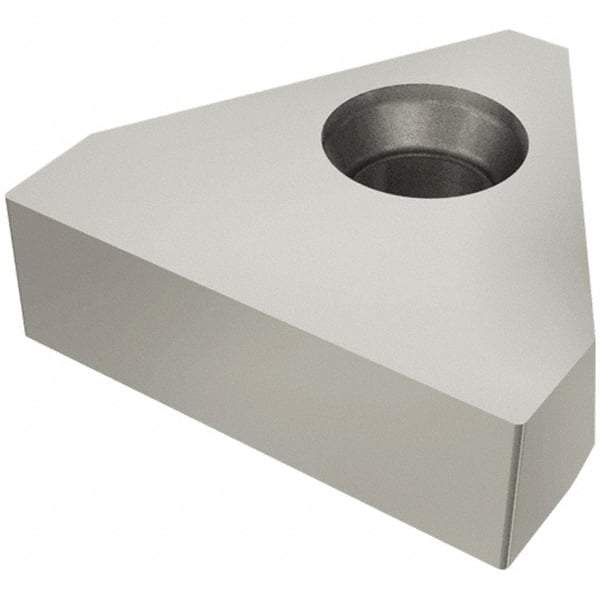

Iscar - 130505XNUW Grade IC28, 13mm Cutting Width Carbide Grooving Insert - Neutral, Uncoated
Item #: 05412010
Brand: Iscar
Model #: 6402779
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNUW |
| Insert Size | 130505 |
| Material | Carbide |
| Cutting Width (mm) | 13.00 |
| Cutting Width (Decimal Inch) | 0.5118 |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.35 |
| Cutting Height (Decimal Inch) | 0.2106 |
| Multi-Use Tool | No |
| Overall Length (mm) | 20.60 |
| Overall Length (Decimal Inch) | 0.8110 |
| Series | V-Lock |
| Rake Angle | 7 |
| Rake | Positive |
| Overall Width (mm) | 13.00 |
| Overall Width (Decimal Inch) | 0.5118 |
| Included Angle | 60 |
