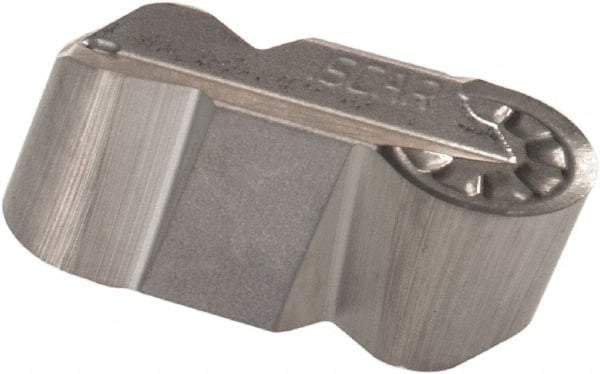

Iscar - 600300GIPA YZ Grade IC20, 6mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Neutral, 3mm Corner Radius, Uncoated
Item #: 05412002
Brand: Iscar
Model #: 6402756
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPA |
| Insert Size | 600300 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 7 |
| Chipbreaker | YZ |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Overall Length (mm) | 14.99 |
| Overall Length (Decimal Inch) | 0.5900 |
| Series | Cut Grip |
| ISO Number | GIPA 6.00-3.00YZ |
| Manufacturers Catalog Number | GIPA 6.00-3.00YZ |
