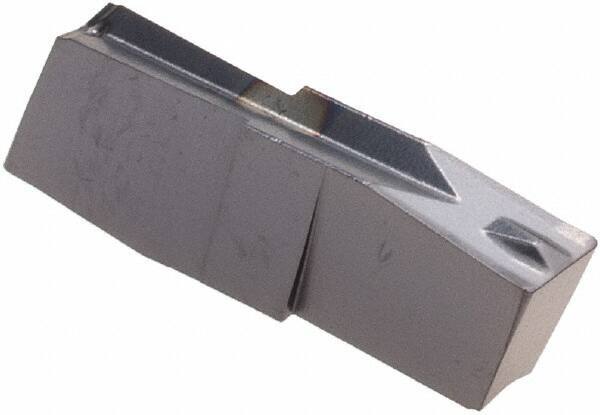

Iscar - 287020GIP Grade IC908, 2.87mm Cutting Width Carbide Grooving Insert - 13mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, TiN/TiAlN Finish
Item #: 05270186
Brand: Iscar
Model #: 6402827
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 287020 |
| Material | Carbide |
| Cutting Width (mm) | 2.87 |
| Cutting Width (Decimal Inch) | 0.1130 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Series | Cut Grip |
| ISO Number | GIP 2.87-0.20 |
| Manufacturers Catalog Number | GIP 2.87-0.20 |
