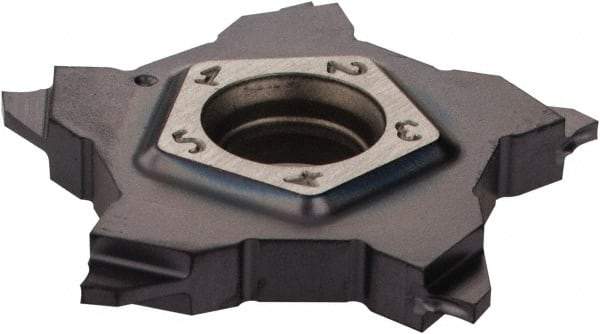

Iscar - 24N080J000PENTA J Grade IC908, 0.8mm Cutting Width Carbide Grooving Insert - 1.6mm Max Depth of Cut, Neutral, TiAlN Finish
Item #: 05206768
Brand: Iscar
Model #: 6003105
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N080J000 |
| Material | Carbide |
| Cutting Width (mm) | 0.80 |
| Cutting Width (Decimal Inch) | 0.0315 |
| Maximum Depth of Cut (mm) | 1.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Material Grade | T15 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Chipbreaker | J |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Series | PENTA |
| Manufacturers Catalog Number | PENTA 24N080J000 |
