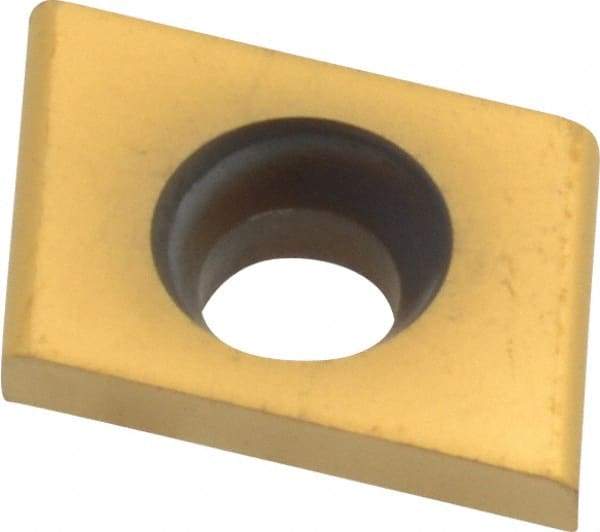

Kennametal - CDE322 Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 0.15" Thick, 3/8" Inscribed Circle, 0.76mm Corner Radius
Item #: 05190558
Brand: Kennametal
Model #: 1180889
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CDE |
| Insert Size | 322 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.3748 |
| Length (Decimal Inch) | 0.5110 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1500 |
| Corner Radius (Decimal Inch) | 0.0299 |
| Corner Radius (mm) | 0.76 |
| Hole Diameter (mm) | 4.32 |
| Hole Diameter (Decimal Inch) | 0.1701 |
| Coating Process | PVD |
| Included Angle | 78 |
| Shape | Diamond |
| Insert Hand | Right Hand |
| ISO Number | CDE322R05 |
